Product introduction
1: Versatility
1.1: Body size: length 37mm * width 20mm * thickness 26mm
1.2: Voltage range: DC3V ~ DC220V, it is recommended to choose DC12V or more
1.3: Suitable stroke: 0 ~ 13mm, recommended within 10mm
1.4: Working style: one-way keep push-pull
1.5: Holding strength: 10N (holding strength can be customized)
1.6: Reset method: spring / mechanical
Two: electrical parameters
Model: DK1037L / S
2.1: Reference value
Power-on rate = 100% X power-on time / power-on time + power-off time | 100% | 50% | 25% | 10% |
Continuous power | Interval power | |||
Maximum power-on time (seconds) | F | 120 | 10 | 2 |
Power W (20 ℃) | 4 | 8 | 16 | 50 |
Model-DC voltage | Current (A) / Resistance (Ω) | |||
DK1037L / S -6V | 0.66 / 9 | 1.33 / 4.5 | 2.66 / 2.2 | 8.33 / 0.7 |
DK1037L / S -12V | 0.33 / 36 | 0.66 / 18 | 1.33 / 9 | 4.166 / 2.8 |
DK1037L / S -24V | 0.166 / 144 | 0.33 / 72 | 0.66 / 36 | 2.08 / 11.5 |
2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)
2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)
2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH
2.5: Appearance without damage, cracks, rust, surface stains
Dimensions

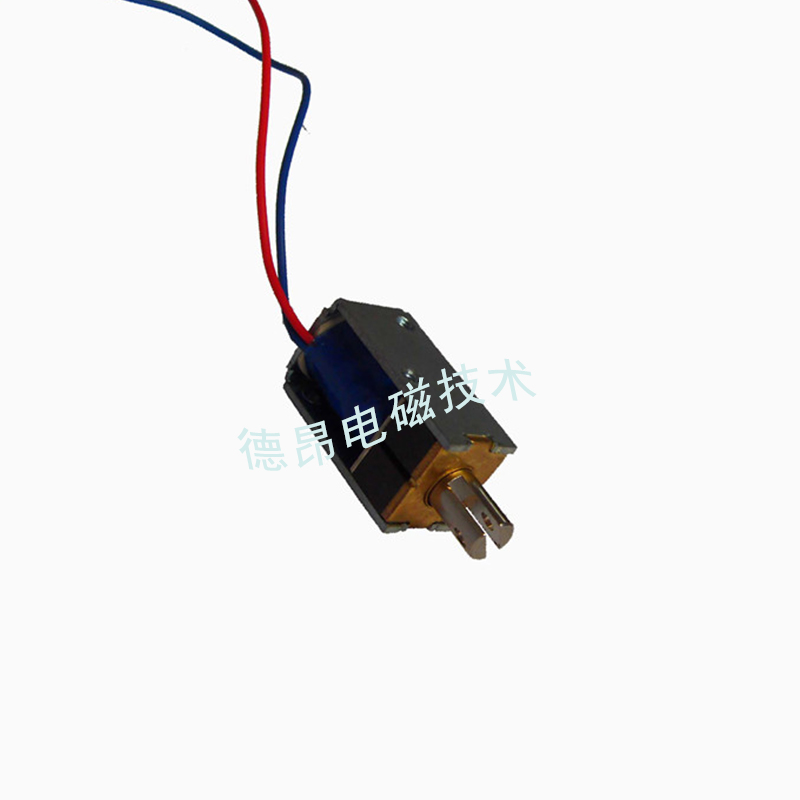

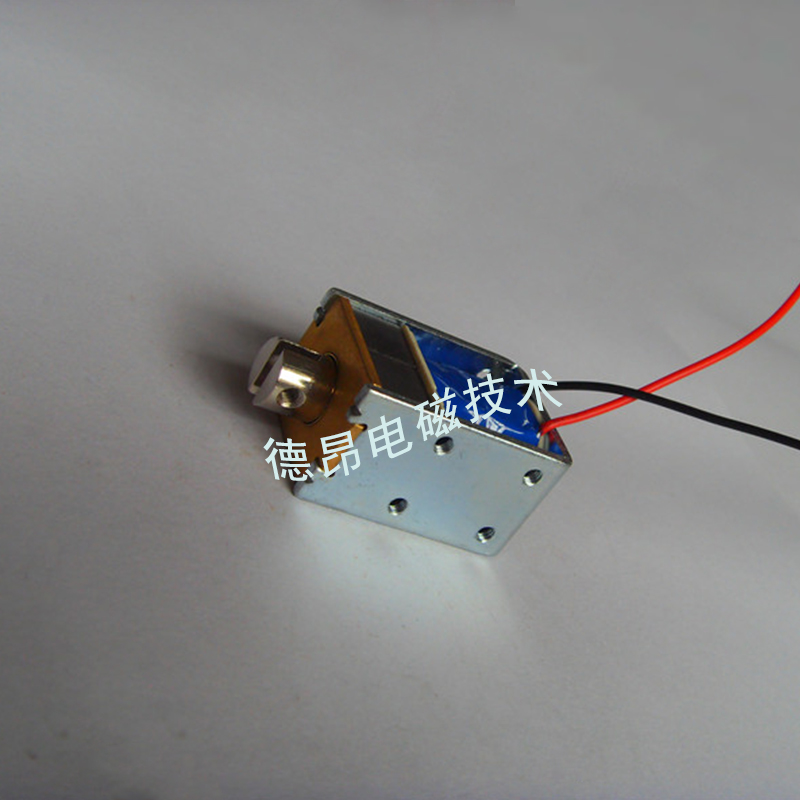

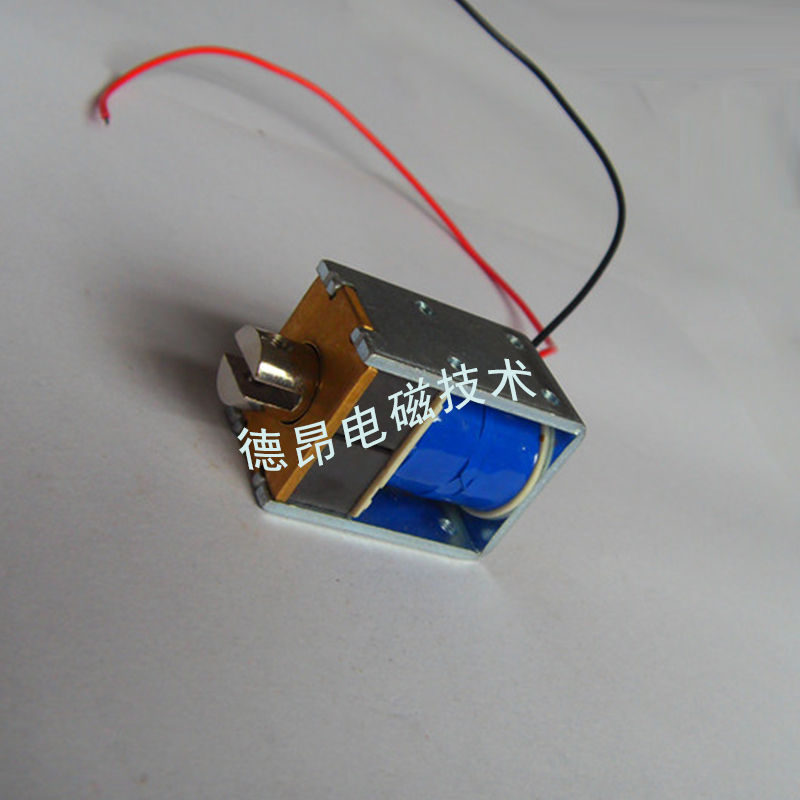

Products real shot
